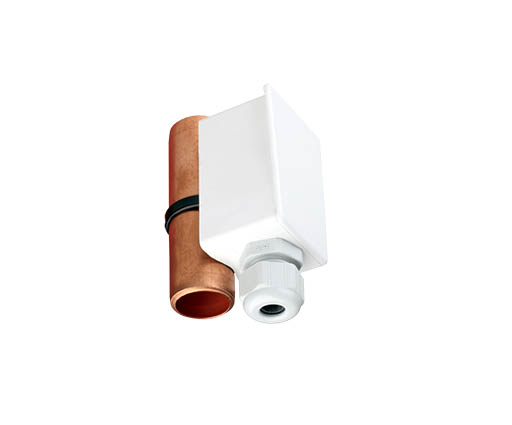

ALTF 0 incl. cable tie
Contact temperature sensor/pipe contact sensor, with passive output
Application
The ALTF 0 is a pipe contact temperature sensor in IP54 housing with snapon cover. For recording the temperature by means of surface measurement on lines, pipes (e.g. cold and hot water) or on heating lines for heating control.
Technical Data
| Measuring range: | - 30 ...+110 °C |
| Sensors: | For passive sensors see data sheets |
| Circuit type: | 2- wire connection |
| Measuring current: | see resistance table |
| Process connection: | Plastic cable tie (included) |
| Cable tie dimensions: | Ø = 13 - 61 mm (1⁄4 - 2“) 180mm |
| Connection head: | made of plastic, polyamide with Snap-on cover, colour pure white (Similar to RAL 9010) |
| Dimensions: | 33 x 53 x 37,2 mm |
| Electrical connection: | 0,14 - 1,5 mm² via screw terminals on circuit board |
| Cable gland: | M16, with tension relief |
| Insulation resistance: | ≥ 100 MΩ, bei 20 °C (500V DC) |
| Humidity: | < 95 % r. H. non-condensing air |
| Protection class: | III (according to EN 60 730) |
| Protection type: | IP 54 (according to IEC 529) |
