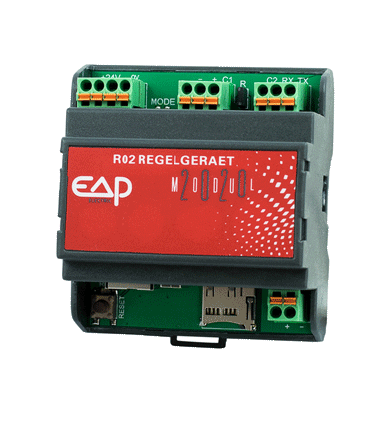

R02 Control unit
with integrated Linux board
Application
The R02 is a control unit with integrated Linux board and the following interfaces: internal Modbus®-RTU, external Modbus®-RTU, RS232 optionally KNX, on the Linux subboard: Ethernet, USB. The application is in house, building and plant technology. Programming with Windows EAP Studio PT2020 software. Up to 15 expansion modules (248 I/Os) of the MODUL2020 series can be plugged in directly to expand the I/Os.
Technical Data
| Power supply voltage: | 24V DC +15%, -5% |
| Power consumption: | 200mA |
| PLC:: | integrated Linux board with 4-fold core to 1.2 GHz, 512M RAM |

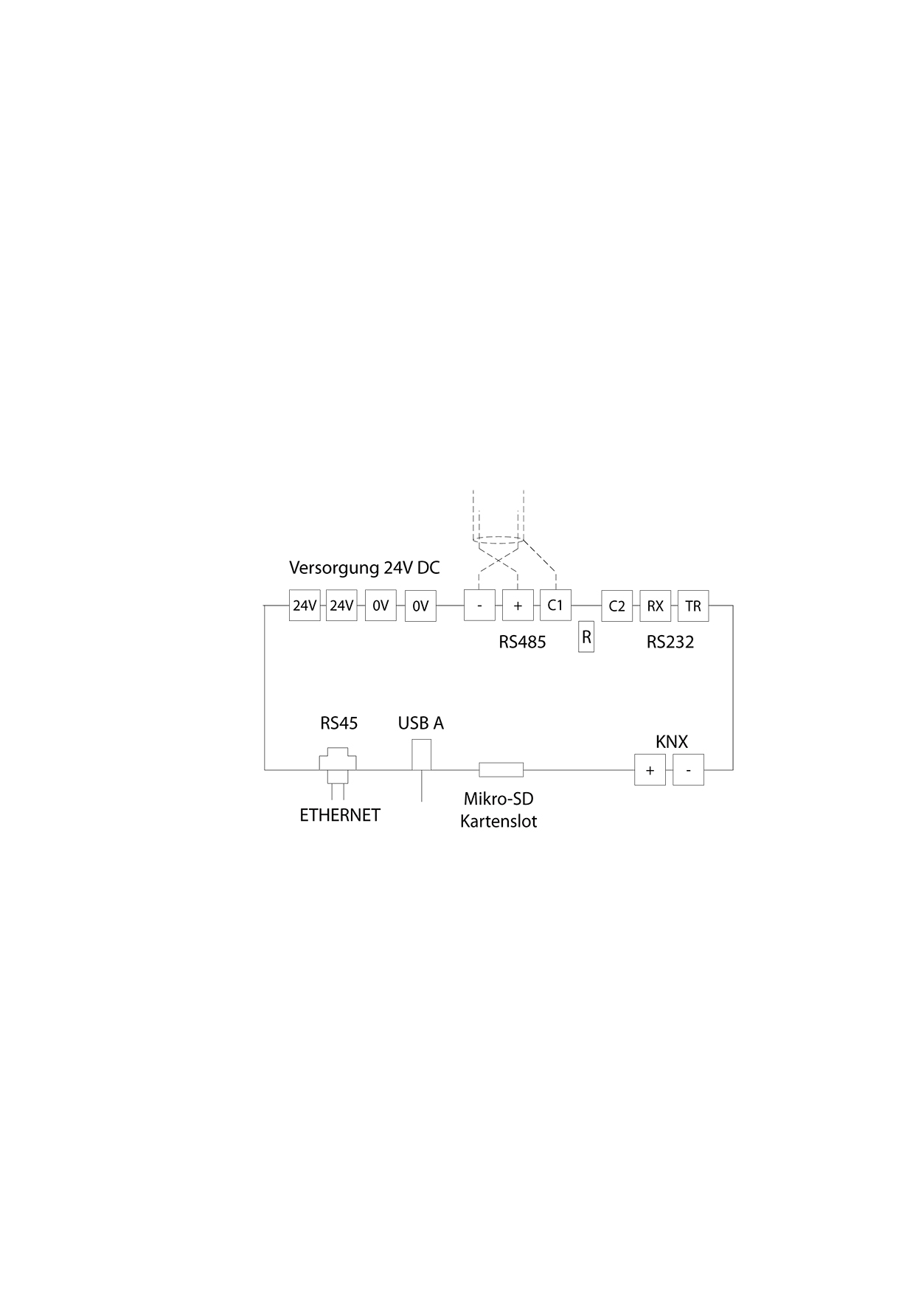

| Interfaces:: | internal: Modbus®-RTU external: Modbus®-RTU, RS232, (optional KNX) on the Linux subboard: Ethernet, USB |
| Firmware update: | Module2020 via micro SD Linux PC via Ethernet |
| Housing: | 45 mm in-line system WxHxD: 70x90x58mm |
| Terminals: | Plug-in terminals with push-in connection up to 1.5 mm² |
| Installation: | TS35 profile rail |
| Ambient temperature: | 0...+50°C |
| Protection type: | IP20 |
